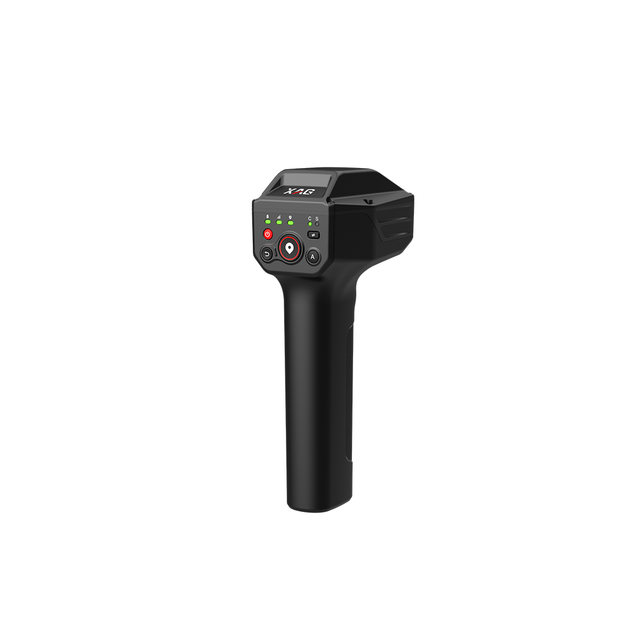

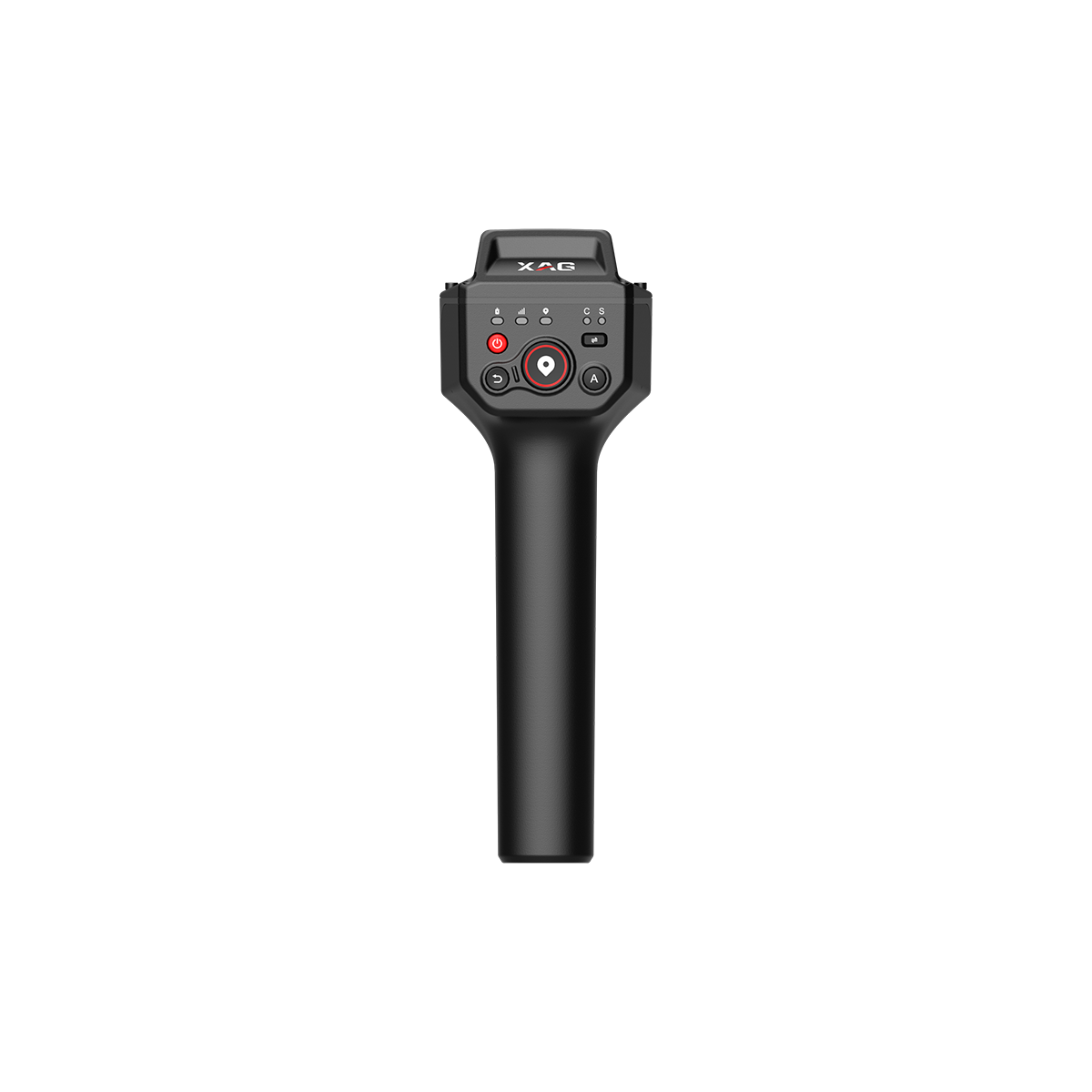

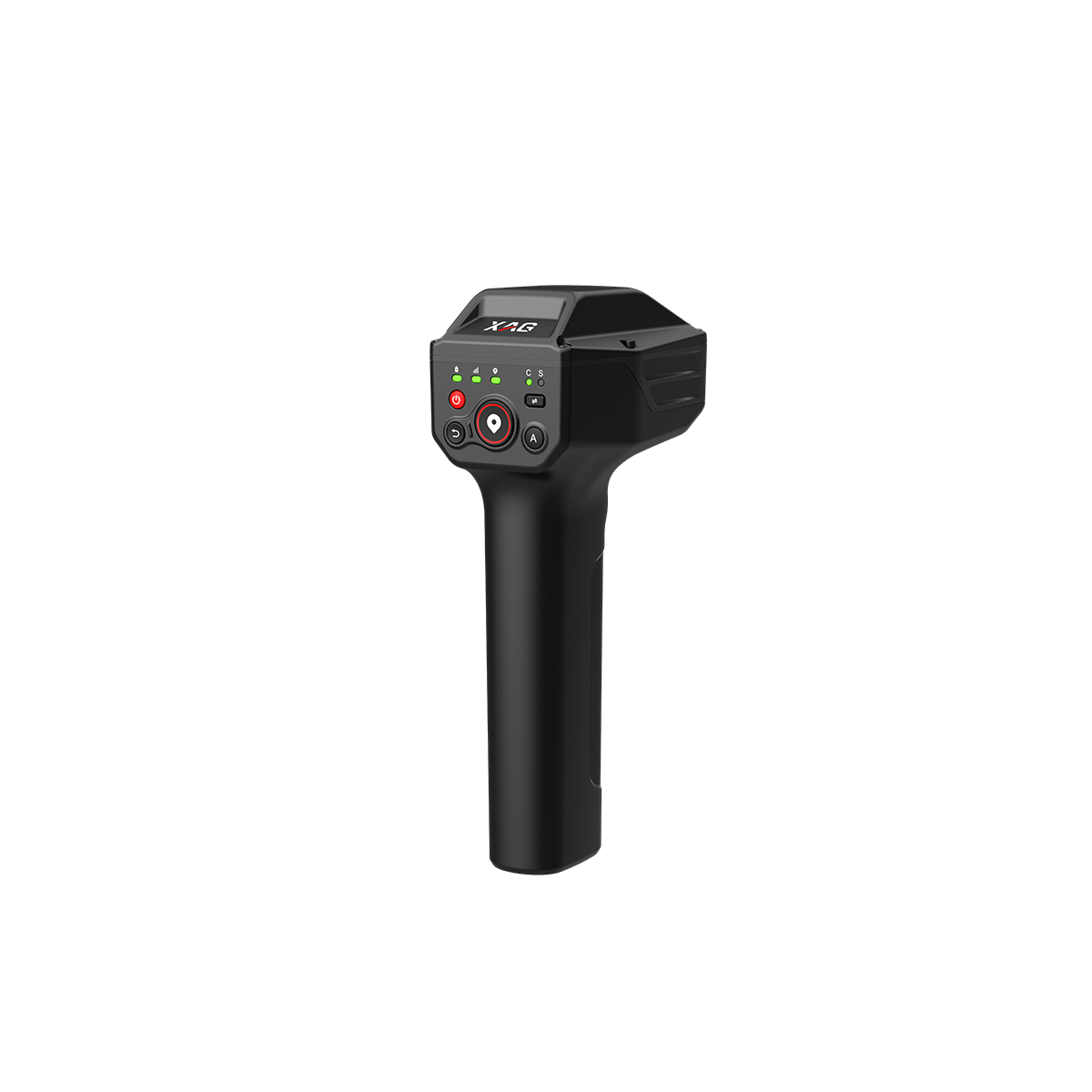

XAG® GNSS XRTK7 Mobile Station
The XRTK7 combines centimeter-level RTK accuracy, fast field boundary marking, and extended communication coverage in a single portable device. With one-press base-station activation, operators can quickly enable precise positioning for autonomous missions, while the built-in relay boosts signal stability in tall crops, orchards, and hilly terrain. Compact and efficient, the XRTK7 streamlines setup, enhances mapping accuracy, and ensures reliable connectivity across every field.
Pair Well With
Explore these products that pair perfectly with your purchase. Add any of these recommended products to complete your setup.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Specification
Technical Specification
- ModelM3RTK7AH
- Dimensions222mm x 112mm x 75mm
- WeightApprox. 0.55 kg
- IP RatingIP65
- Positioning AccuracyHorizontal: <5.0cm + 1ppm (RMS)
Vertical: <7.5cm + 1ppm (RMS) - Battery Capacity10000mAh / 3.65V
- VibrationYes
- Voice PromptYes
Technical Specification
- Charging ProtocolSupports PD/QC Protocol
- Charging Voltage / Current5V⎓3A, 12V⎓1.5A
- Charging Ambient Temperature5°C to 40°C
- Operating Ambient Temperature-10°C to 45°C
- Storage Ambient Temperature-20°C to 55°C Less than a Month
-20°C to 45°C One to three months
-20°C to 25°C Three months to one year - Max Transmission Distance2000 Meters
- Bluetooth ProtocolBluetooth LE V5.2
- Operating Frequency (Bluetooth 5.2)2402 MHz ~ 2480 MHz
