XAG  |  SKU: RTK-FIX-STATION

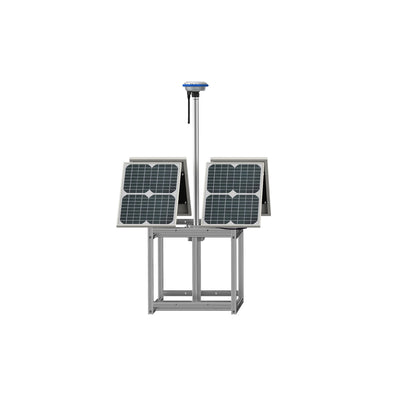

XAG® GNSS RTK Fix Station

$4,440.00 $4,720.00
Tax included
1. Select Your Option

We offer a variety of solutions to fit your needs. Select your preferred package from the options below and click on the package to view the details.

XAG® GNSS RTK Fix Station
$4,440.00 $4,720.00
Up to 6% off
Included in this package

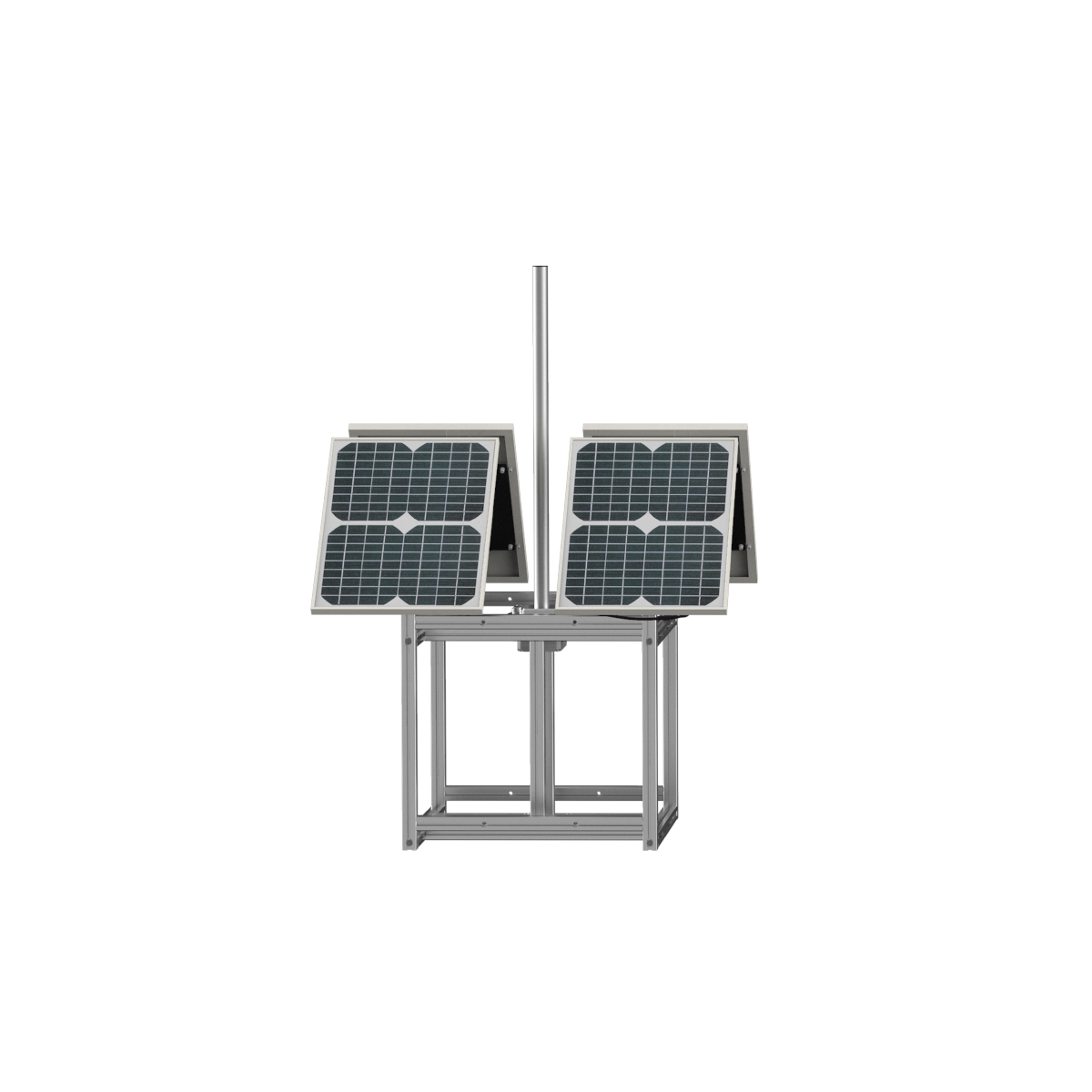

  • XAG® GNSS RTK Fix Station (Structure Only) 1 x XAG® GNSS RTK Fix Station Structure
  • XAG® GNSS XRTK4 Ground Module 1 x XAG® GNSS RTK Fix Station GNSS Module
2. Recommended Accessories

Explore these products that pair perfectly with your package. Add any of these recommended accessories to complete your setup.

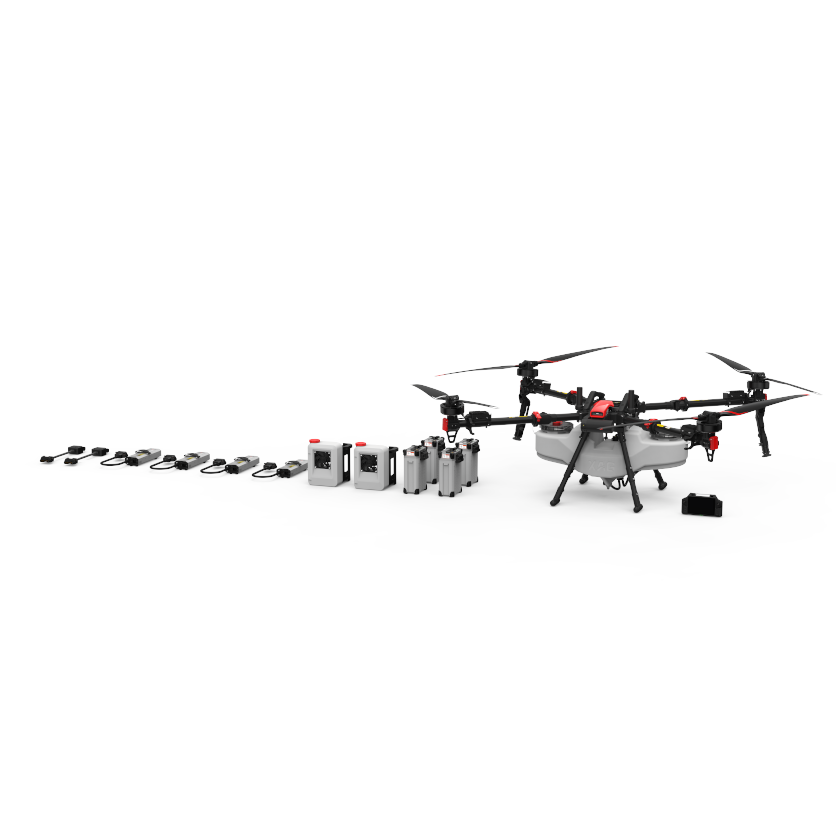

XAG® P150 Max (4B4C Standard Package)
$45,000.00 $51,790.00
Up to 13% off

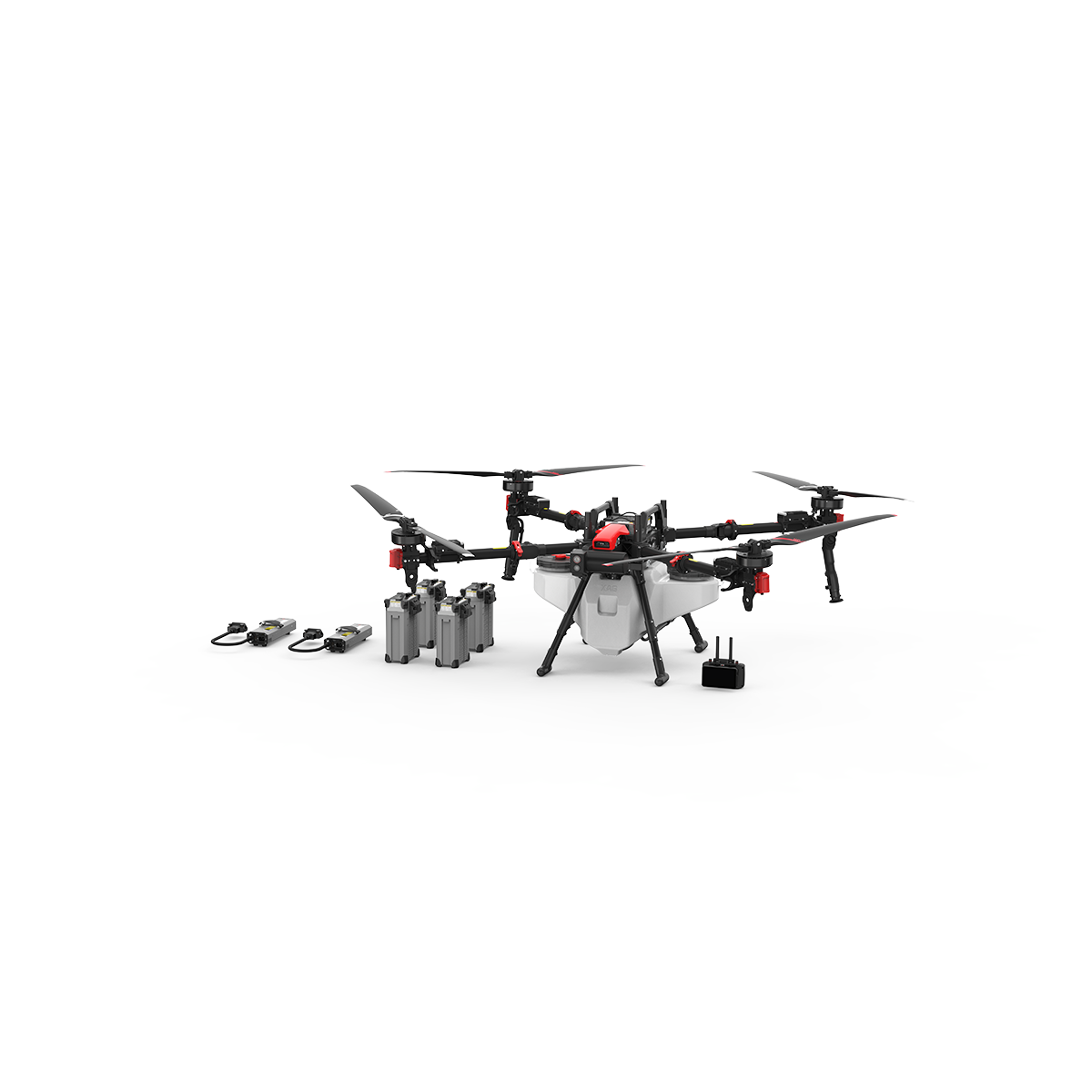

XAG® P150 Basic Package
$45,000.00 $52,400.00
Up to 14% off
Your Customised Package is Ready
Congratulations, you've successfully customised your package. Take a moment to review your order, then click "Add to cart" to complete your purchase.
XAG® GNSS RTK Fix Station
$4,440.00
Included
  • 1 x XAG® GNSS RTK Fix Station Structure
  • 1 x XAG® GNSS RTK Fix Station GNSS Module
$4,440.00

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Specification

FULL SPECIFICATION >
RTK Positioning Module for Agricultural Use
  • ModelXRTK4
  • Dimensions (Diameter x Height)154mm x 83.6mm (RTK Module)
    154mm x 1230mm (RTK Module + Rod)
  • Weight1.5 Kg (RTK Module)
  • Port/PanelButton x 3, Positioning Indicator x 1
    Networking Indicator x 1
    Power Indicator x 1
  • IP RatingIP65
  • Operating Temperature-20° - 50° C
  • Storage Temperature-40° - 85° C
  • Relative Humidity100%, condensation
  • Warranty Details12 Months
GNSS Performance & Specifications
  • Compatible MotherboardK726
  • GNSS FrequencyBDS: B1I / B2I / B3I / B1C / B2a
    GPS: L1 / L2 / L5
    GLONASS: L1, L2, L2C
    Galileo: E1 / E5a / E5b
    QZSS: L1 / L2 / L5
  • RTK Positioning AccuracyHorizontal: ±10mm+1ppm (RMS)
    Vertical: ±15mm+1ppm (RMS)
  • Initialization TimeTypical <10 seconds
  • Initialization Reliability>99.9%
  • Data Update RateMaximum 20 Hz (Raw data)
    Maximum 20 Hz (Positioning data)
Features Specification
XAG® GNSS RTK Fix Station
XAG® GNSS RTK Fix Station $4,440.00
SHOP NOW
XAG

XAG® GNSS RTK Fix Station

$4,440.00 $4,720.00

The XAG® GNSS RTK Fix Station delivers centimetre-level positioning accuracy for XAG agricultural drone operations, mapping, and autonomous flight.



By transmitting real-time RTK correction data to compatible aircraft and controllers, the station upgrades standard GPS positioning to RTK-FIX accuracy, allowing drones to fly repeatable routes with precise swath alignment and reliable terrain following. This is essential for orchard spraying, vineyard applications, boundary mapping, and consistent seasonal operations.



Designed for field deployment, the base station supports multiple satellite constellations and maintains a stable correction signal across large operating areas. When paired with RealTerra mapping and autonomous flight planning, operators benefit from improved navigation stability, reduced overlap, and more efficient chemical placement.



Key Advantages
